Fiber Optic Closure

Fiber Optic Closure

Facebook   Twitter   Delicious   Google   My EC21   Email this page   Report Item Inquire now

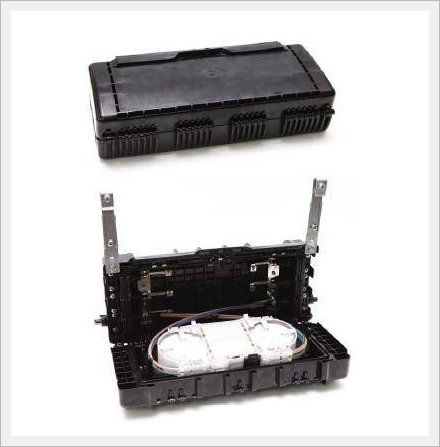

Fiber Optic Closure

Click to enlarge image

 Origin

Korea


Features

Fiber optics closure protects fiber optic splices in installation conditions such as aerials. It is designed for the aerial-line especially and provides the safety by using one-touch handle clip and the reliable sealing performance in low pressure environment. In addition, it provides the optimum environment for maintain and the beauty of the town by supplying the operation environment according to the suitable design for pole and no-splicing of cable.

Features

  • Development of the operating environment by not surplus the cable spool
  • Design for the suitability for the pole, the beauty of the town
  • Reduction of the working hour and the safety by using one-touch handle clip
  • Reliable sealing performance in low pressure environment
  • Fiber optic protection, prevention of tube-break off and insurance against risk of bend
  • Double structure of sheath gasket and sheath holder
  • Prevention from vibration, movement by using aerial hanger to fix closure and aerial line together

Specification

ITEM
size 420 x 180 x 100mm
weight 2.5kg
inlet ports 6
cable diameter 3Ø ~20Ø
no. of splice tray 3
tray capacity 24C(Max. 48C)
splice capacity 72C(Max. 144C)
splice method fusion, mechanical, connector
splice protector heat shrinkable sleeve, mechanical splicer
tension member galvanized steel wire, FRP
